Description

Huawei 5G CPE Win H312-371 Specifications:

* Product type: 5G outdoor CPE

* Chipset: Huawei 5G Balong 5000  chipset

* Communication Standard: 3GPP Release 15

* Network Mode: NSA / SA(*SA capabilities depend on the available network and software version, which need to be customized.)

* Support 5G Frequency Band: n41/n77/n78/n79

* 5G Transmission Rate: 1.65Gbps / 250Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

* 4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

* Wireless Frequency Band: 2.4GHz, only for installation and configuration, not for internet access

* Antenna
– 5G / 4G Antenna Type: 5G / 4G main and diversity antennas
– WLAN Antenna Type: Built-in 2.4GHz Wi-Fi antenna

* Network Port: 1 GE Lan port, 1 SIM card slot (Nano-SIM)

* Button: Reset

* Led Indicator: 5G / 4G indicator

* Power Supply: < 24W

* AC/DC Power Supply: AC: 100V – 240V 50Hz/60Hz, DC: 19V/1.26A

* HUAWEI AI Life App: Mobile network (5G / 4G) access, Ethernet access, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel / VPN penetration, IPv6 and IPv6 / IPv4 dual stack, multi-APN, WebUI, HOTA, etc

* Operating temperature: -40 °C ~ 55 °C (no solar radiation), storage temperature: -40 °C ~ + 70 °C

* Humidity: 5% ~ 95% (non-condensing)

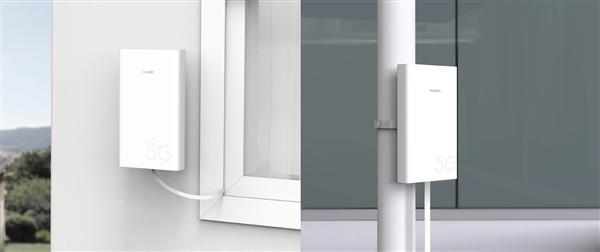

* Easy to install on windowsill/wall/pole for better signal

* IP65 Waterproof and dustproof

* Support POE(Power Over Ethernet)

* Color: White

* Dimensions: 187mm(Depth) x 112mm(Height) x 29.6mm(Width)

* Weight: About 570g (excluding the power adapter)

* Packing List
– HUAWEI 5G CPE Win: 1 (standard configuration)
– PSU: 1 (standard configuration)
– PSU power cable: 1 (standard configuration)
– Ethernet Cable: 1 (standard configuration)
– Base: 1 (standard configuration)
– Adjustable pole strap: 1 (standard configuration)
– Nameplate: 1 (standard configuration)
– Internal hexagon wrench: 1 (standard configuration)
– Screw: 4 (standard configuration)
– Expansion anchor: 4 (standard configuration)
– Quick Start: 1 (standard configuration)
– Warranty Card: 1 (optional)
