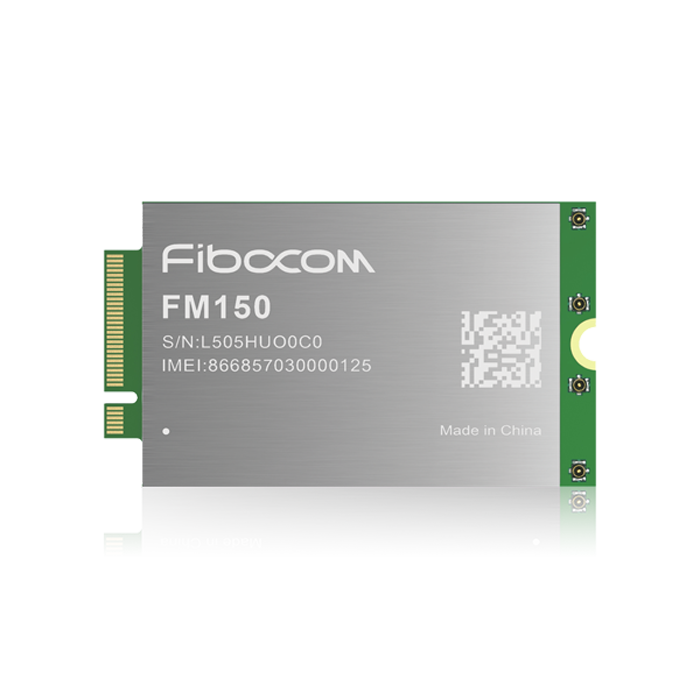

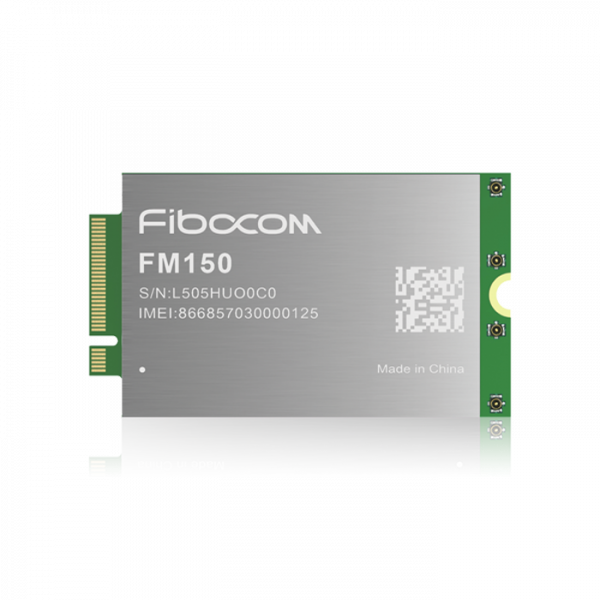

Fibocom FM150-NA 5G module Specifications:

* Product type: 5G Cellular Module

* Brand: Fibocom

* Package: M.2

* Support LTE: Cat 20 and above

* Support 4G LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

* Support 4G LTE TDD:B41/B42/B43**/B48

* Support 3G WCDMA:B1/B2/B4/B5/B8

* 5G Operation mode: NSA & SA

* NR MIMO:
– DL 4 x 4 MIMO: n2, n66, n41, n78
– UL 1 x 1 MIMO

* LTE MIMO:
– DL 4 x 4 MIMO: B2, B4 ,B7, B25, B30, B41, B42, B46, B66, B48
– UL 1 x 1 MIMO

* Downlink:
– NR sub6: 4 x 4 MIMO 256QAM 1CC(4 layers)
– LTE: 4 x 4 MIMO 1024QAM 7CC(6CC 24 layers)
– NR sub6: 2 x 2 MIMO 256QAM
– LTE: 1 x 1 MIMO 256QAM

* Antenna:4

* Interfaces
– PCIe: PCIe 3.0
– USB3.1:x 1
– GPIO:
– I2C:
– UIM:
– I2S:
– MIPI:

* GNSS: GPS/GLONASS/Galileo/Beidou

* Power Supply: 3.3V~4.4V(Typical 3.8V)

* Operating Temp.:-30℃~+75℃

* OS Drivers: Linux 4.1**/Android 9.0**

* Other Features
– Voice: VoLTE
– SMS: SMS over IP(IMS)
– Audio
– FOTA

* Approvals: HF*/FCC*/GCF*/PTCRB*/TMO*/Verizon*/AT&T*

* Dimension: 30.00 x 52.00 x 2.3(mm)
